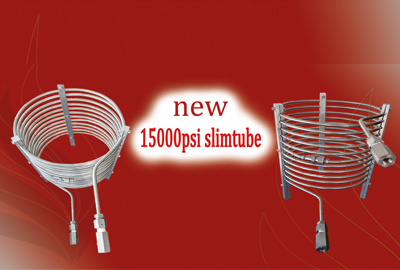

This laboratory apparatus is used to determine the minimum miscibility pressure (MMP). The tube is a 40 feet stainless steel which is coiled and pre-packed with glass beads, and is saturated with oil. The desired gas is injected into the slim tube at a selected pressure and, the oil is recovered at the end of tube. By analyzing the recovered oil at different pressures, the MMP will be achieved for the selected gas composition.
Features
- Tube length: 30m (other lengths are available upon reques)
- Tube OD: 1/4 inch
- Maximum working pressure: 15,000 psi
- Maximum working temperature: 150°C
- Approximate porosity: 35%
- Wetted parts: Stainless steel 316
- Power supply: 220 VAC, 50/60 Hz
- Usable fluids: Hydrocarbon gases, CO2, N2, solvents
In order to find out about various models of Slim Tube Apparatus, contact us with the subject of "Slim Tube Apparatus".
